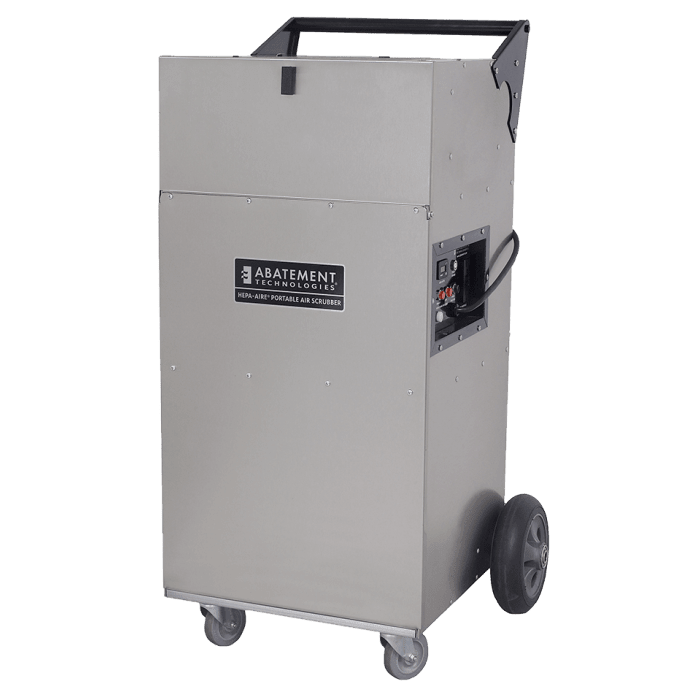

Abatement Technologies HEPA-AIRE® PAS1200 Portable Air Scrubber
Tax included
in stock
Compact, Upright Design Fits Easily into Tight Spaces
The full-feature HEPA-AIRE PAS1200 Portable Air Scrubber from Abatement Technologies® is the stainless-steel counterpart to our PRED1200 model, with similar performance characteristics. The PAS1200 features variable airflow control from 300 cfm to 900 cfm. Multiple units can be daisy-chained on one 15-amp circuit via the GFCI-protected duplex receptacles. The PAS1200 is capable of maintaining 6 ACH in spaces up to 7,500-9,000 ft³ at peak rated airflow.
The PAS1200 Portable Air Scrubber is designed to employ up to four filter stages to remove potentially hazardous airborne particles from healthcare construction, maintenance, and renovation zones
- First stage pre-filter - Inexpensive 1"-deep pre-filter for larger particles
- Second stage pre-filter - 2"-deep pleated filter for medium-sized particles
- Third stage pre-filter (optional, not included with the unit) - 2"-deep high-capacity carbon filter for gases and odors
- Final stage - Tested & certified 99.97%-efficient metal-frame HEPA filter
Features of the HEPA-AIRE PAS1200 Portable Air Scrubber include
- Easy to Transport - 8” non-marking rear wheels with smooth tires roll quietly and protect floors
- Powerful Blower - High-efficiency airfoil blower provides 6 ACH @ 7,500-9,000 ft³
- Maneuverable in Small Spaces - Front swivel casters allow the PAS1200 to “turn on a dime” in tight spaces
- Solid-Rivet Aircraft Construction - Strong leak-resistant cabinets
- User-Friendly Controls - A complete array of convenient controls enables users to continuously monitor the operating status of the PAS1200
- Safety First - NRTL certified to conform to UL507 and CSA 22.2 safety standards
- Easy 'No Tools' Pre-Filter Access - Fast filter changes
- Separate Pre-Filter Compartments - Less bypass, helps prevent premature HEPA loading
- 230 VAC/50 Hz Export Model - PAS1200TF runs on 230 Volt/50 Hz current (1,000-1,250 m³/hr.)
Filters Pollutants Using up to Four Stages of Filtration
The PAS1200 uses a special backward-curved blower and high-speed motor to pull pollutants through up to four stages of filtration.
Recessed Control Panel
The recessed control panel provides all controls in one location.
Control Panel Features:
- Variable speed control
- ‘Power On’ indicator lamp
- ‘Replace Pre-filter’ indicator lamp
- ‘Replace HEPA’ indicator lamp
- Hour meter
- Male power receptacle
- Pop-out circuit breaker
| Dimensions (L x W x H) |
19.25L x 22W x 39H
|
| Air Changes per Hour |
6 ACH @ 9,000 ft
|
| Airflow |
300-900 cfm
|
| Net Weight With Filters |
85 lbs
|
| Shipping Weight |
95 lbs
|
| Power Supply Requirements |
120 VAC, 60Hz, 15 amps
|
| Circuit Breaker |
12 Amp pop-out style
|
| Electrical Safety |
NRTL-certified to comply with UL Std. 507 & CAN/CSA Std. #C22.2 No. 113-M1984 for electrical safety
|
| Cabinet Material |
20 gauge corrosion-resistant stainless steel
|
| Stage 2 Pre_Filter |
2-deep pleated prefilter (MERV 8)
|
| Stage 1 pre-filter |
Inexpensive, 1 deep FIBER-TRAPPER pre-filter for capturing large particulates; can be washed and reused or treated as a disposable (MERV 4)
|
| Stage 3 optional pre-filter |
2-deep high-capacity VAPOR-LOCK carbon filter for gas and odor adsorption (MERV 7)
|
| Motor Blower |
High-efficiency airfoil type motorized impeller rated for 100,000 hours, with thermal overload protection & auto reset
|
| Cabinet Construction |
Solid, aircraft-type rivets
|
| GFCI Protected Duplex Receptacle |
Daisy-chain multiple units on one 15 amp circuit
|
